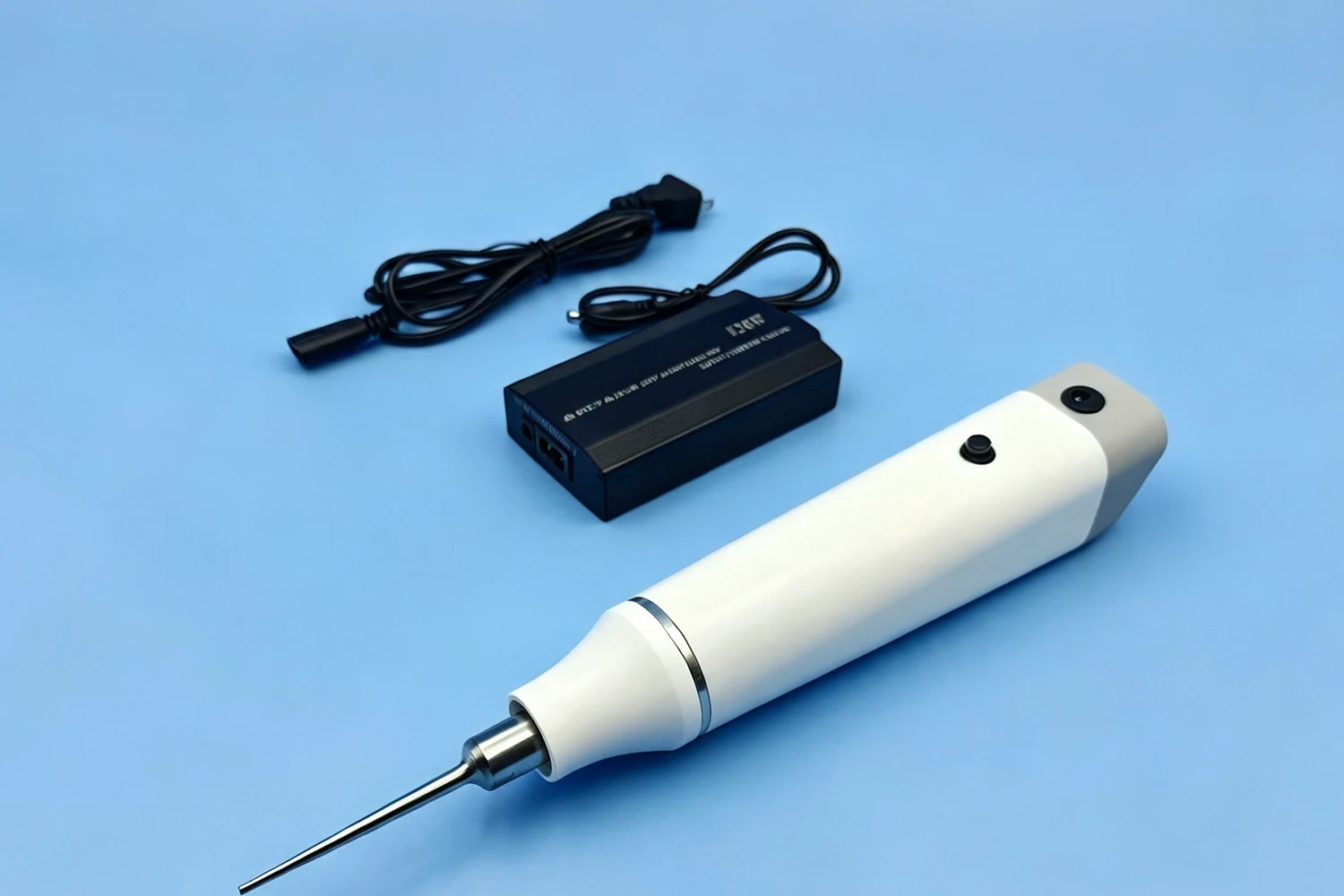

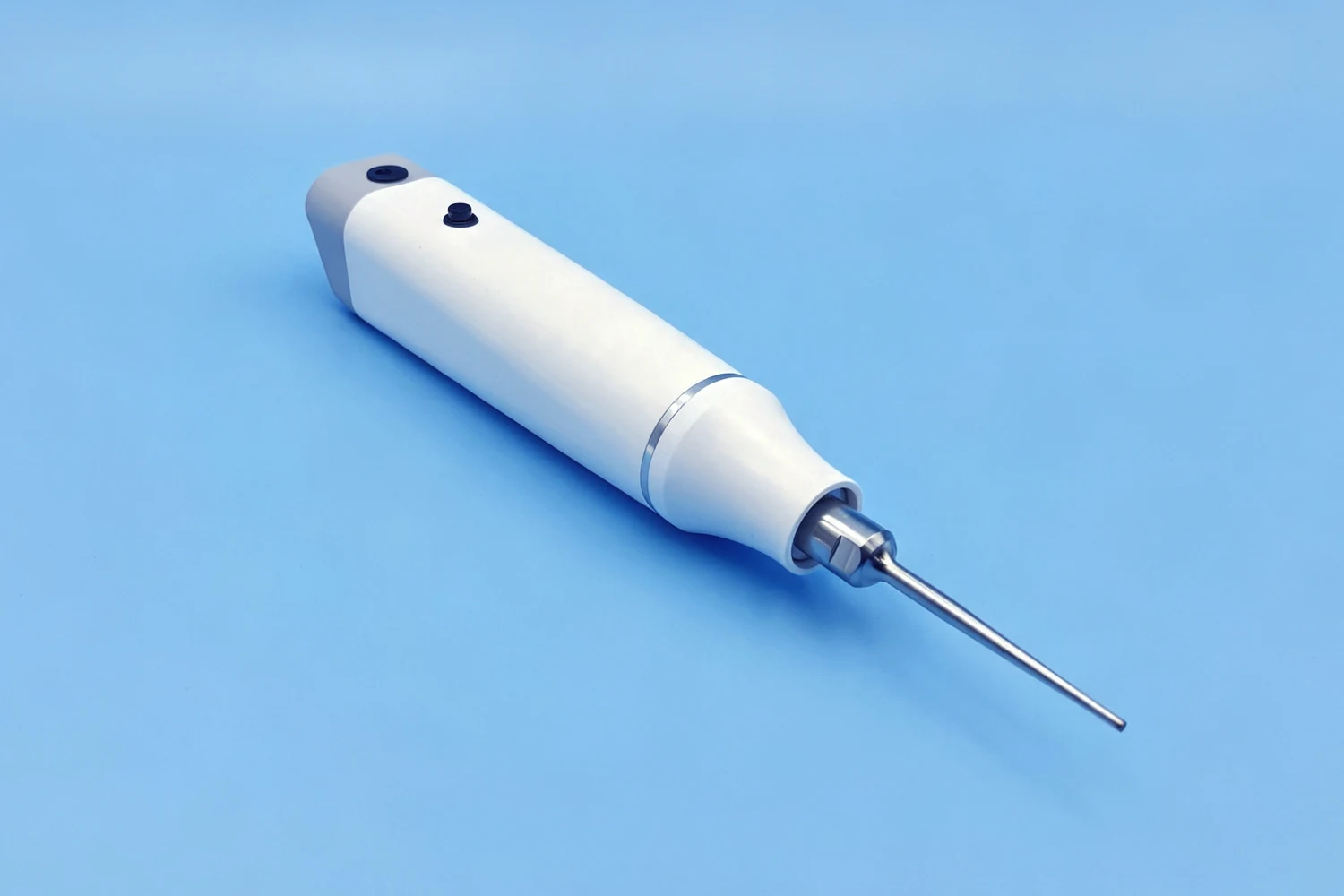

SONOBIO Handheld Ultrasonic Homogenizer Plus | SONO-H3 / H6 / H8
SONOBIO Handheld Ultrasonic Homogenizer Plus | SONO-H3 / H6 / H8 - Imagen 2
SONOBIO Handheld Ultrasonic Homogenizer Plus | SONO-H3 / H6 / H8 - Imagen 3
SONOBIO Handheld Ultrasonic Homogenizer Plus | SONO-H3 / H6 / H8 - Imagen 4
Share this
Tweet this
WhatsApp
Email this

SONOBIO Handheld Ultrasonic Homogenizer Plus | SONO-H3 / H6 / H8

Rango de precios: desde $549.00 hasta $649.00

26% Off

Be the first to leave a review.
  • Three probe configurations: SONO-H3 (Ø3 mm), SONO-H6 (Ø6 mm), and SONO-H8 (Ø8 mm)
  • 100 W or 120 W rated power by model
  • 30 kHz nominal frequency with automatic sweep and tracking across 28–33 kHz
  • AC 85–260 V, 50–60 Hz input
Categories: SKU: N/A

Descripción

SONOBIO product overview 1
SONOBIO product overview 2
SONOBIO product overview 3
SONOBIO product overview 4
SONOBIO product overview 5
SONOBIO product overview 6

SONOBIO · PORTABLE SAMPLE PROCESSING

SONOBIO Handheld Ultrasonic Homogenizer Plus

A compact ultrasonic processor for laboratory homogenization, cell disruption, extraction, dispersion and emulsification. Choose the SONO-H3, SONO-H6 or SONO-H8 probe to suit your sample volume.

Product Highlights

Three Probe SizesØ3 / Ø6 / Ø8 mm for micro to small-batch processing
100 / 120 WRated output varies by probe configuration
28–33 kHzAutomatic frequency sweep and tracking
500 µL–300 mLRecommended volume depends on the selected probe

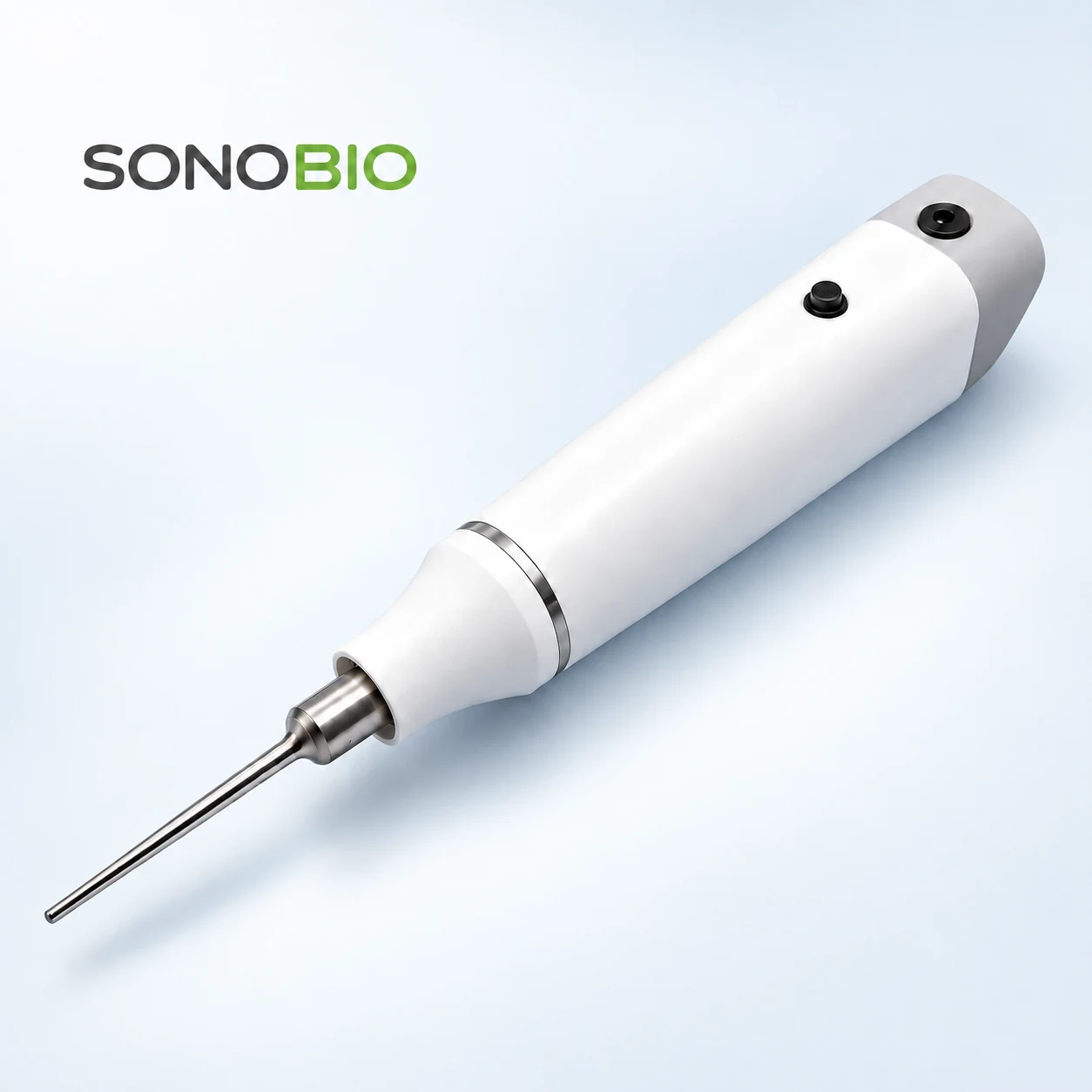

SONOBIO handheld ultrasonic homogenizer product overview

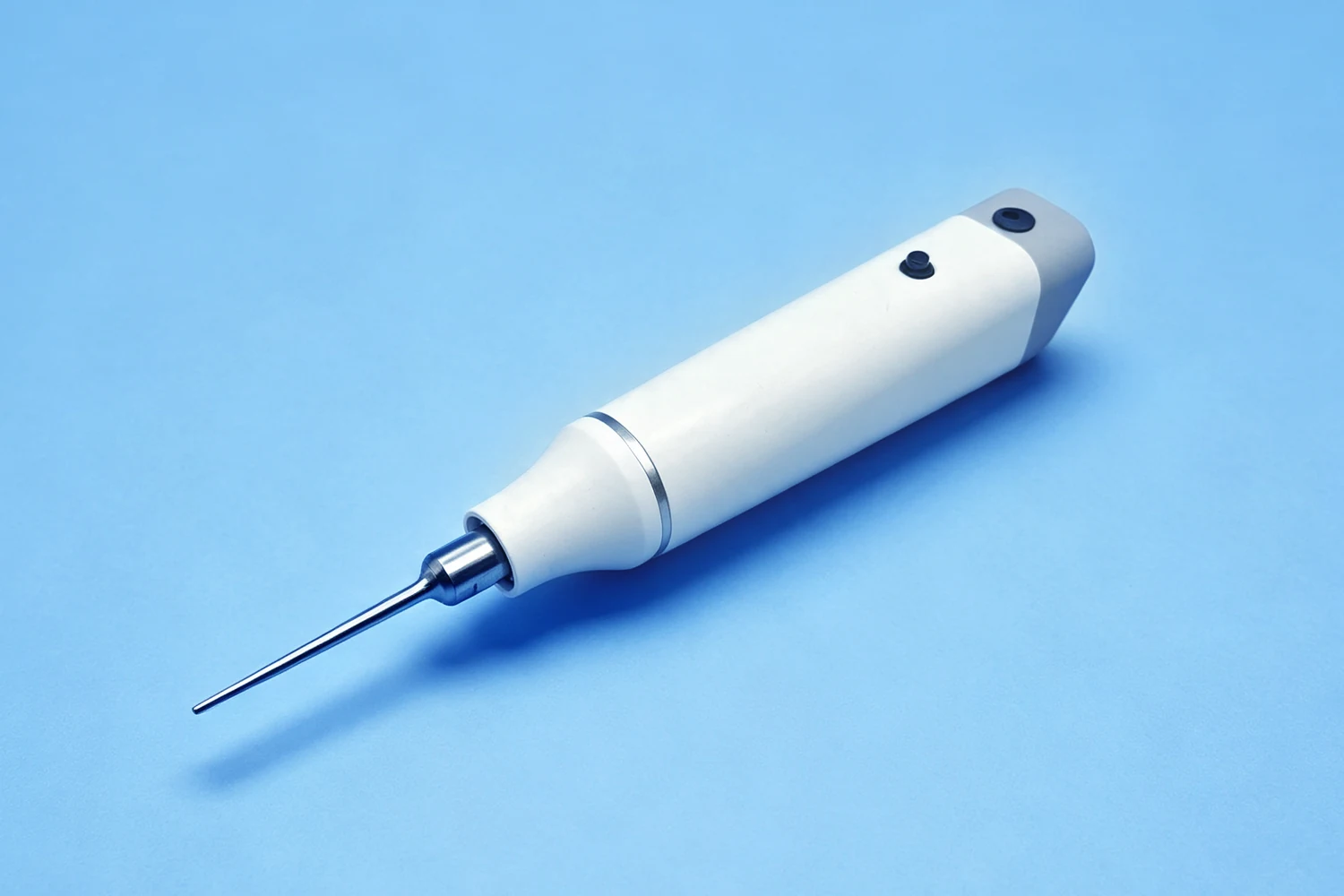

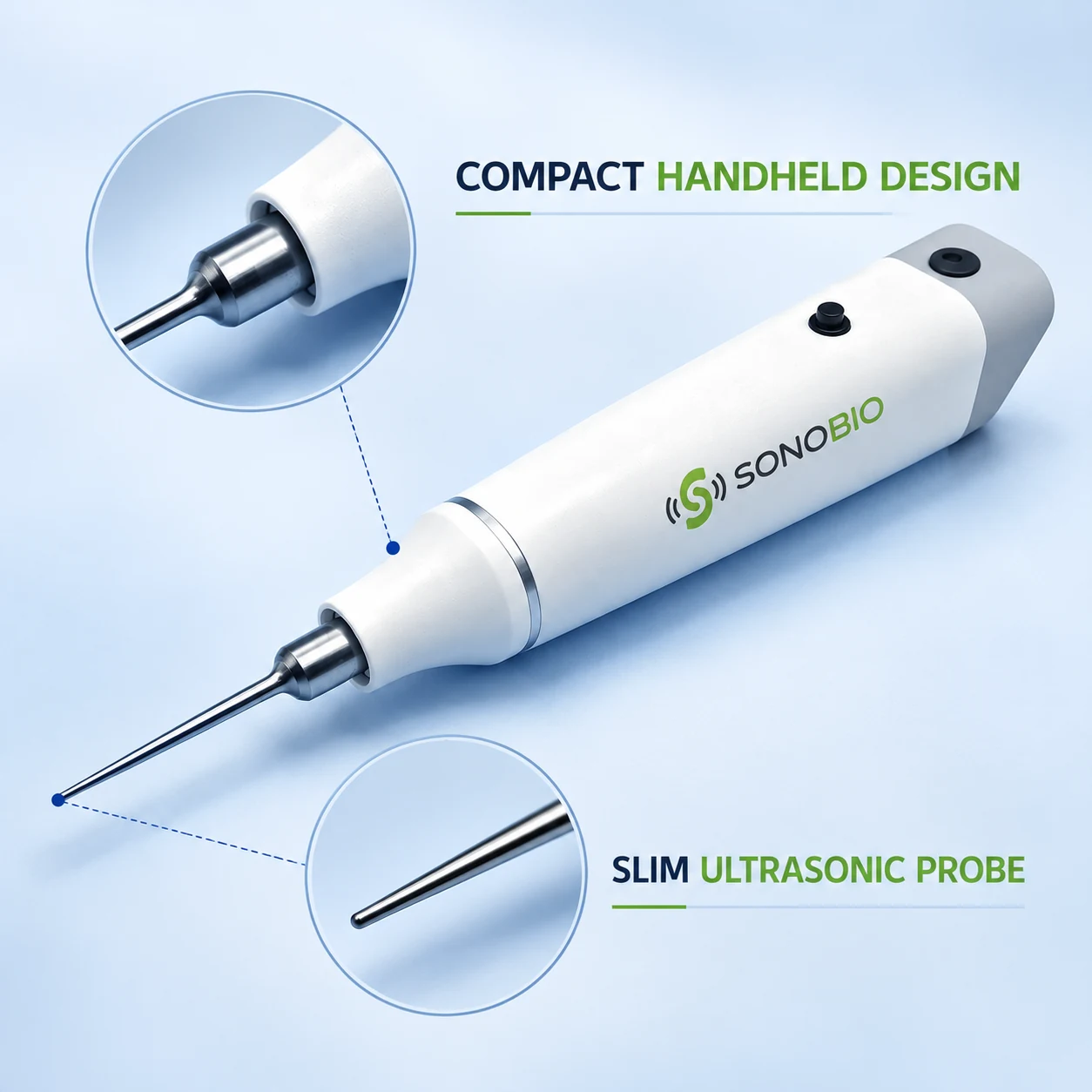

Compact SONOBIO handheld design and ultrasonic probe detail

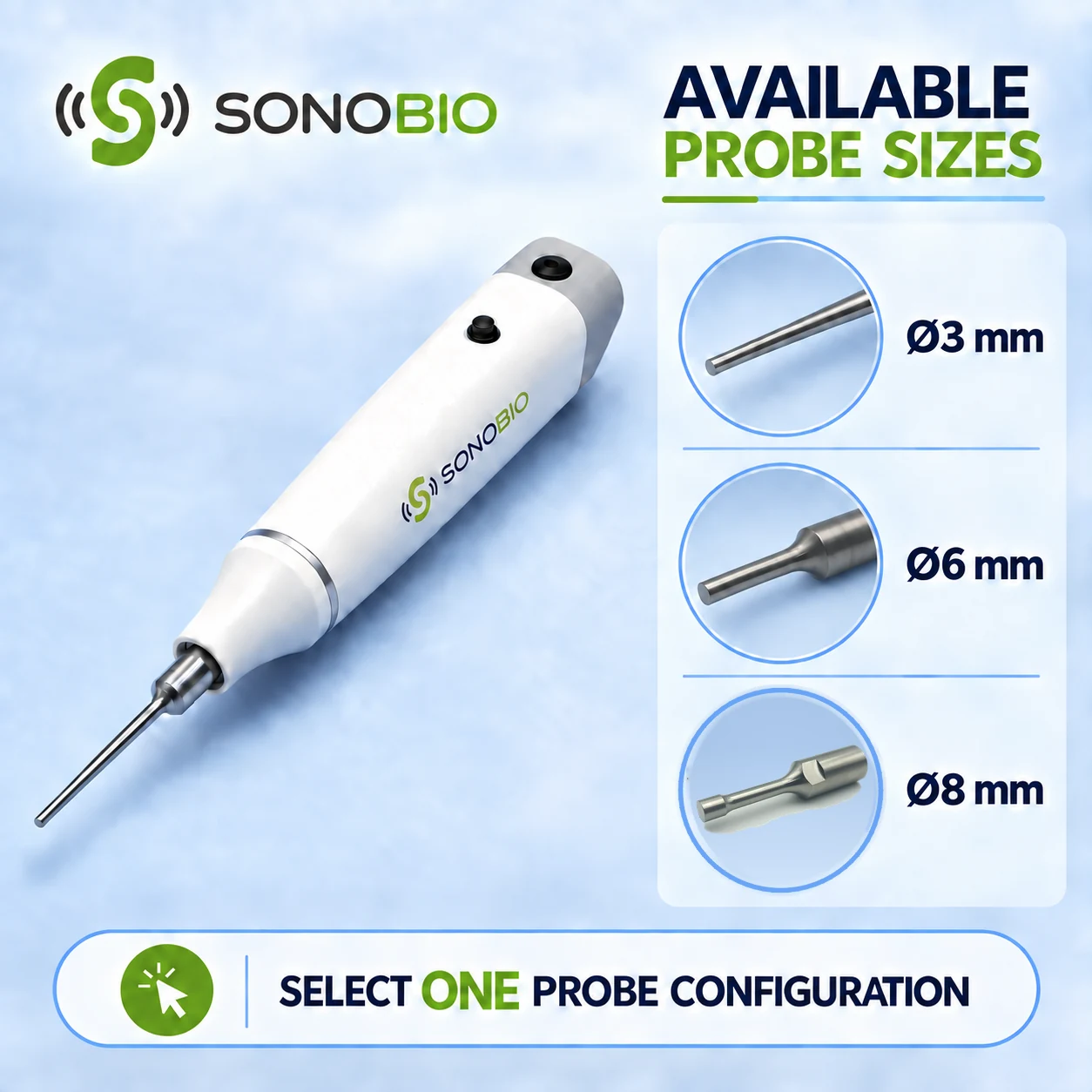

Available Ø3 mm, Ø6 mm and Ø8 mm probe sizes
SONOBIO laboratory sample preparation

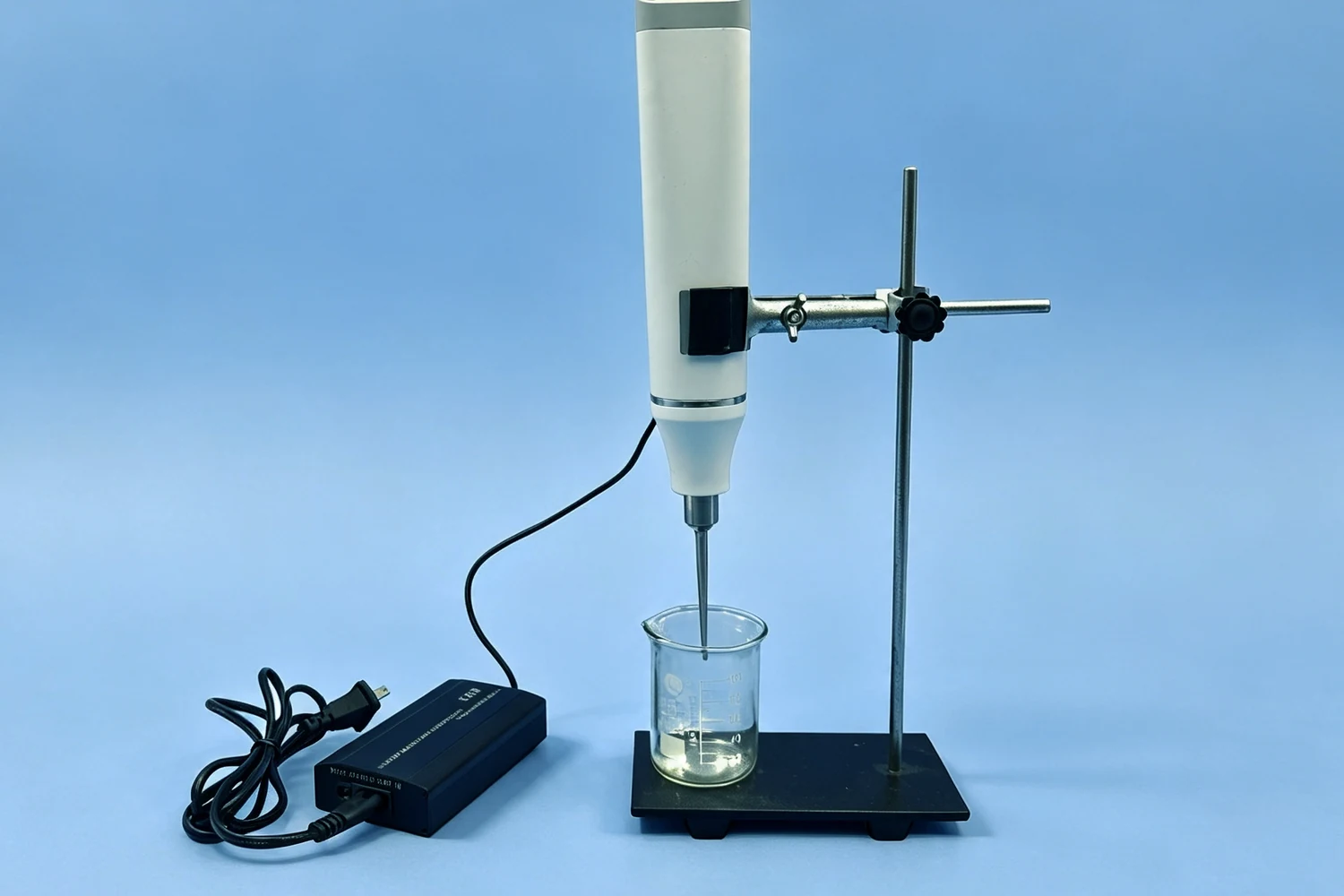

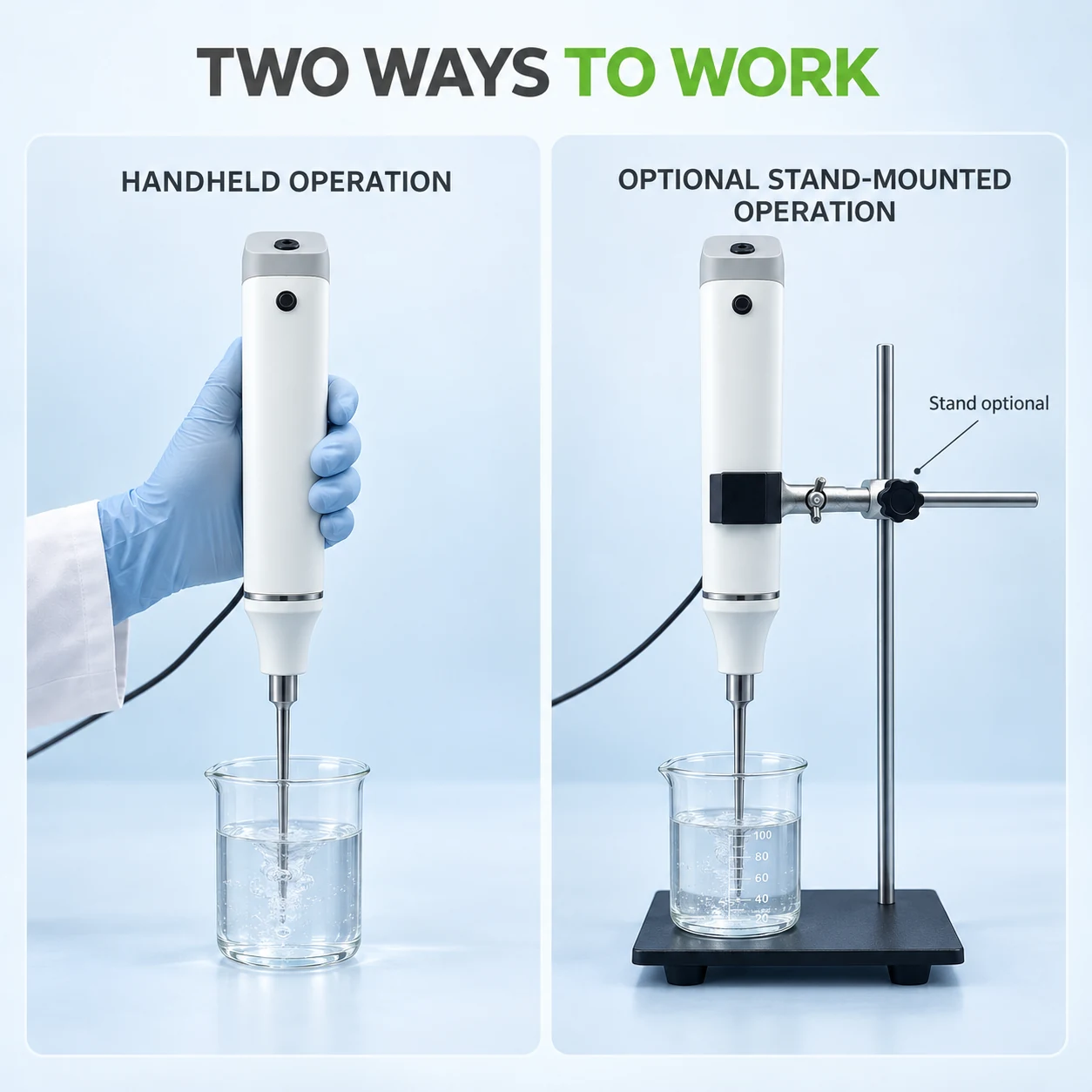

Handheld and optional stand-mounted operation

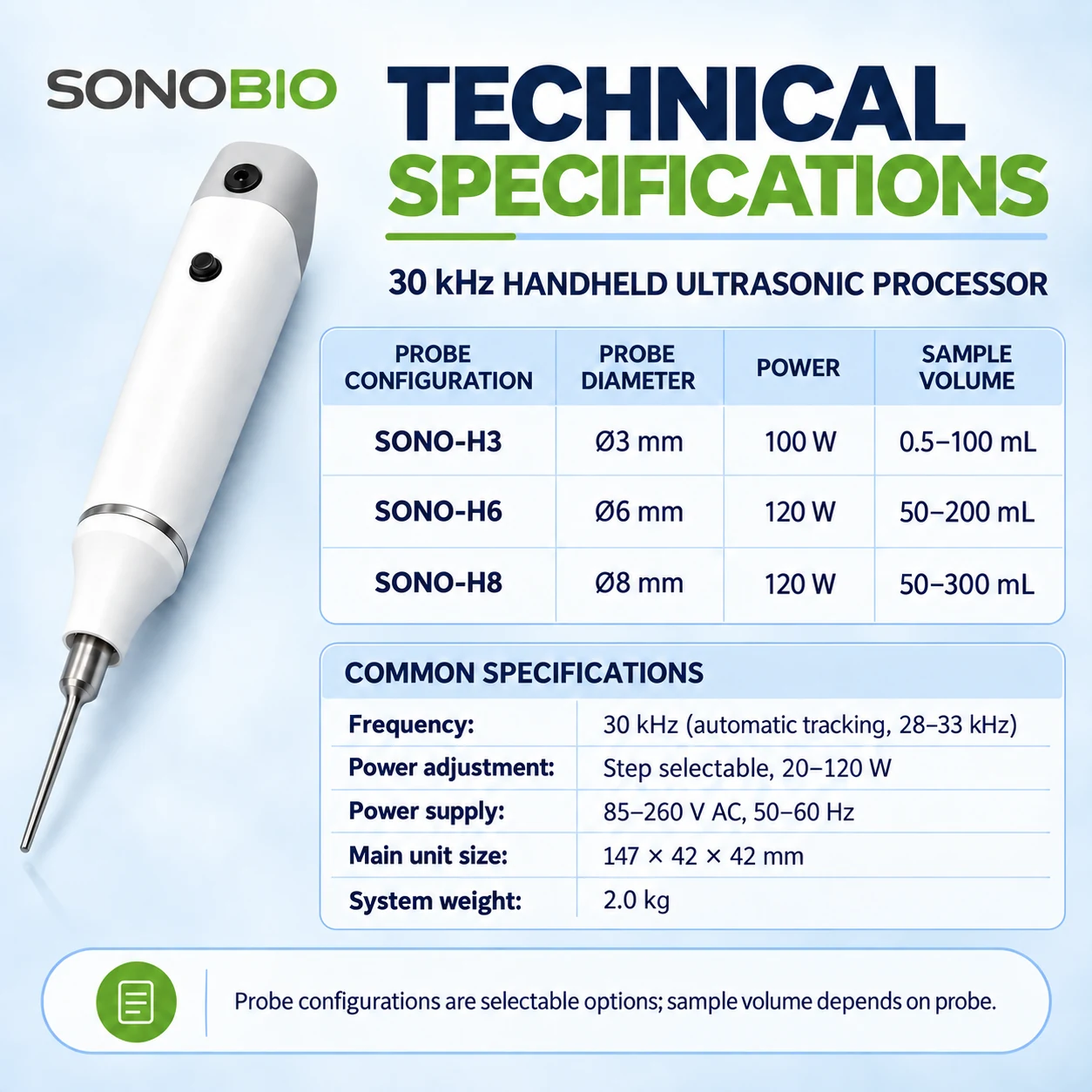

SONOBIO handheld ultrasonic processor technical specifications

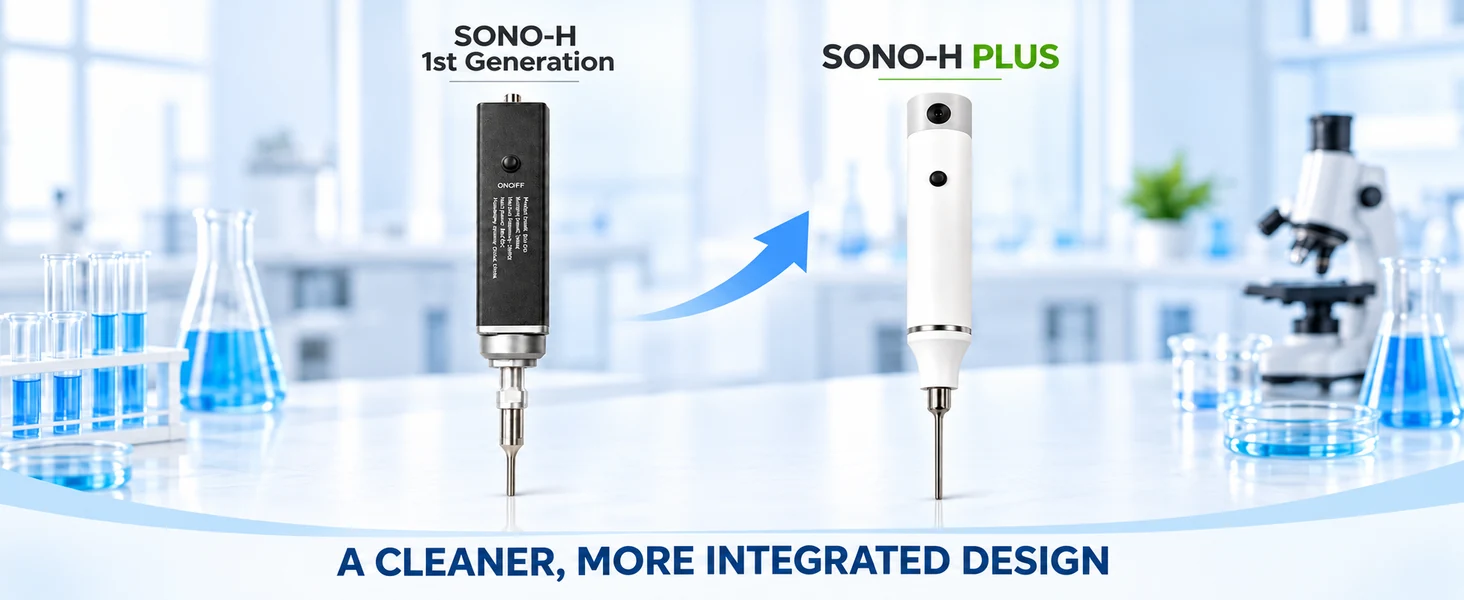

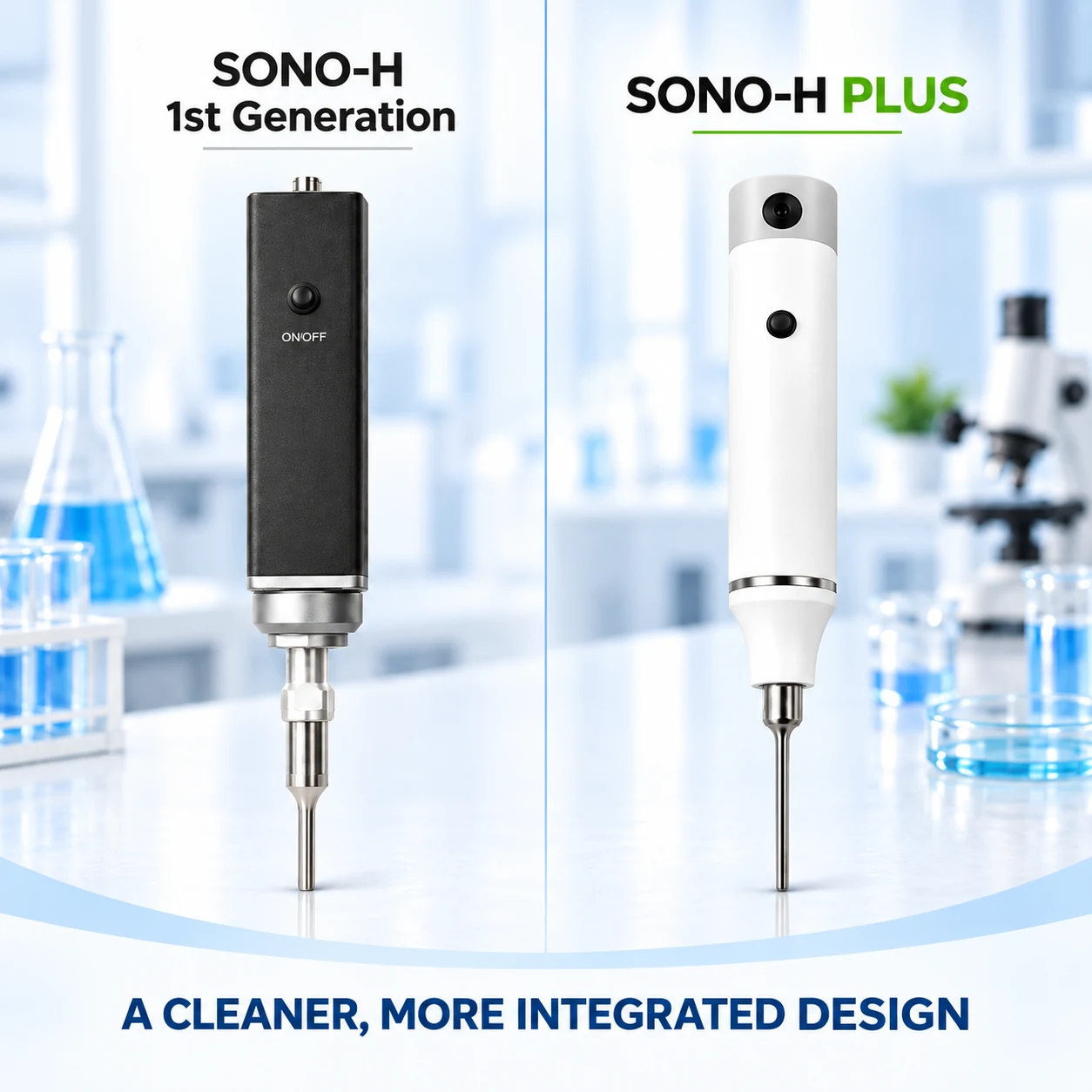

SONO-H Plus integrated handheld design

Main Specifications

Model SONO-H3 / H6 / H8
Probe diameter Ø3 / Ø6 / Ø8 mm
Rated power 100 W (H3); 120 W (H6 / H8)
Frequency 30 kHz nominal; auto sweep 28–33 kHz
Sample volume 500 µL–100 mL (H3); 50–200 mL (H6); 50–300 mL (H8)
Input AC 85–260 V, 50–60 Hz
Main unit dimensions 147 × 42 × 42 mm
Handheld section Approx. 48 mm wide × 145 mm long
Probe length 70–90 mm, model-dependent
Cable length 100 cm
Transductor CV33 piezoelectric energy converter, PZT ceramic
Probe material Ti-6Al-4V titanium alloy
Net weight Approx. 2.0 kg

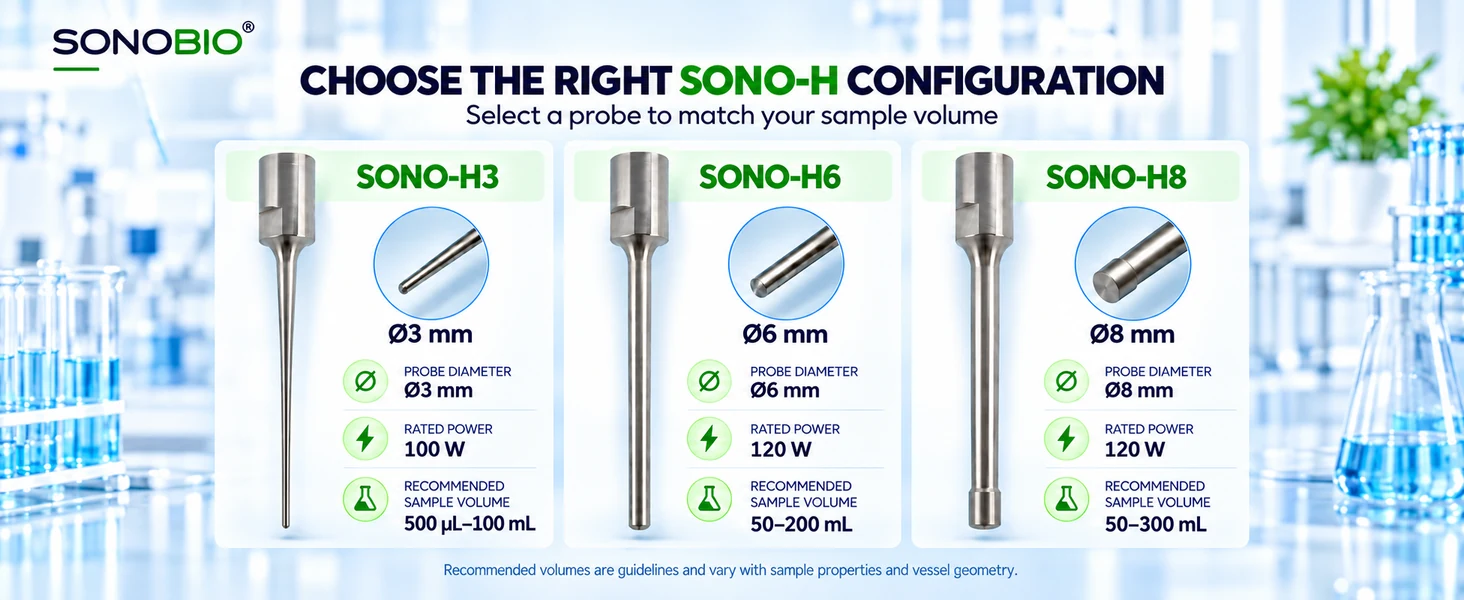

Choose Your Probe Configuration

Match the probe diameter to the working volume and vessel. These ranges are recommended sample volumes; actual results depend on sample properties and vessel geometry.

Model Probe diameter Rated power Recommended sample volume
SONO-H3 Ø3 mm 100 W 500 µL–100 mL
SONO-H6 Ø6 mm 120 W 50–200 mL
SONO-H8 Ø8 mm 120 W 50–300 mL

Applications

Typical applications include cell disruption and lysis, ChIP sample preparation, protein pretreatment, soil organic-matter extraction, botanical extraction, nanomaterial dispersion, accelerated dissolution, reaction assistance, oil–water emulsification and homogeneous mixing.

Cited in 13+ peer-reviewed publications — this SONOBIO platform has been used in published research on cancer drug delivery, biomedical sensors, water treatment, plant chemistry, and tribology. View our scientific publications →

Technical Specifications

Ultrasonic system
Power adjustment Step switch
Transductor CV33 piezoelectric energy converter, PZT ceramic
Physical details
Main unit dimensions 147 × 42 × 42 mm
Handheld section Approx. 48 mm wide × 145 mm long
Probe length 70–90 mm, model-dependent
Cable length 100 cm
Total length Approx. 320 mm, model-dependent
Standard probe material Ti-6Al-4V titanium alloy

Operating Notes

  • Keep the probe tip immersed in liquid before starting ultrasonic output; do not run the probe dry.
  • Keep the probe away from the vessel bottom and wall during operation.
  • Start at a low power setting and increase gradually while monitoring sample and probe temperature.
  • Designed for attended laboratory operation.

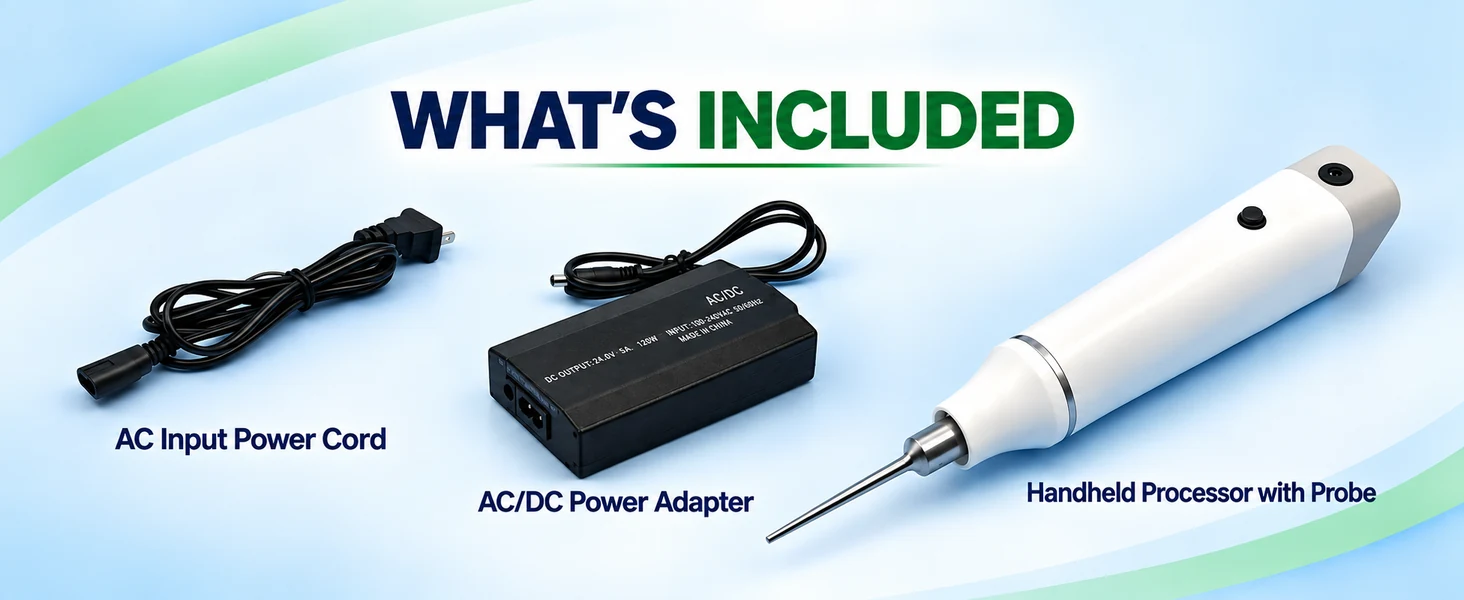

Standard Package Includes

Handheld ultrasonic processor main body 1 unit
Selected ultrasonic probe set 1 set
Power supply and power cable 1 each
Product manual 1 copy

Optional accessory: laboratory stand. Warranty: 6 months for the ultrasonic probe and 12 months for the generator and transducer. Misuse-related damage and shipping or transportation charges are excluded.

Información adicional

Probe Size

SONO-H3 – Ø3 mm Probe (500 µL–100 mL), SONO-H6 – Ø6 mm Probe (50–200 mL), SONO-H8 – Ø8 mm Probe (50–300 mL)
