Non-Contact (Indirect) Ultrasonic Homogenizer

Non-Contact Homogenizer is an ultrasonic mixing/emulsifying homogenizing equipment, there is 4.7″ Touch screen control panel, Digital Type, Programmable.

  • The Cup Tip design ensures a contact-free homogenization process for small-scale samples.
  • Avoids the residue issues typically associated with traditional probe methods.
  • Utilizes sealed cup tubes to process samples, significantly reducing aerosol formation and improving biosafety, especially for organisms like Mycobacterium.
  • Enables simultaneous handling of multiple vials, suitable for both sterile and pathogenic samples.
  • Employs continuous rotation of the centrifuge tube to ensure even distribution of ultrasonic waves.
  • An essential tool for conducting ChIP (chromatin immune precipitation) and DNA shearing studies.
  • Delivers high efficiency, consistent results, and reliable repeatability.
  • Incorporates standardized experimental procedures with sophisticated parameter controls.

If any interest, Please contact us sales expect for more information.
all are customizable… OEM welcome.

Type Non-Contact Ultrasonic Homogenizer
Power in 100 ~240 Voltage, 50 ~ 60 Hz, auto adapt.
Power out 800 Watt Maximum ( 1% ~ 100% stepless control)
Frequency 25kHz(standard)
optional: 20kHz, 28kHz, 30kHz, 35kHz, 38kHz, 40kHz, 60kHz, 80kHz
Whole Size 50 x 40 x 25 cm
Door Size 50 x 20 cm      20 Kgs Net weight.
Energy and temperature set-point control
Digital Type, 4.7″ Touch Screen, Programmable
Probe Materials Titaninum Alloy
Probe Size no probe needed, non-contact, vibration transducer underneath the test bottle
Maximum Volume 8 bottles,  30ml/bottle
Packing 1 set Non-Contact Type Homogenizer
1 power in plug & wire, 3 pcs fuse wire
Video Introduction
Airpressure control, to hold the test bottle.
Ultrasonic emulsification laboratory

Designed for Laboratory & Medical

Ultrasonic emulsification laboratory

non-tough solution, non-pollution

Ultrasonic emulsification laboratory

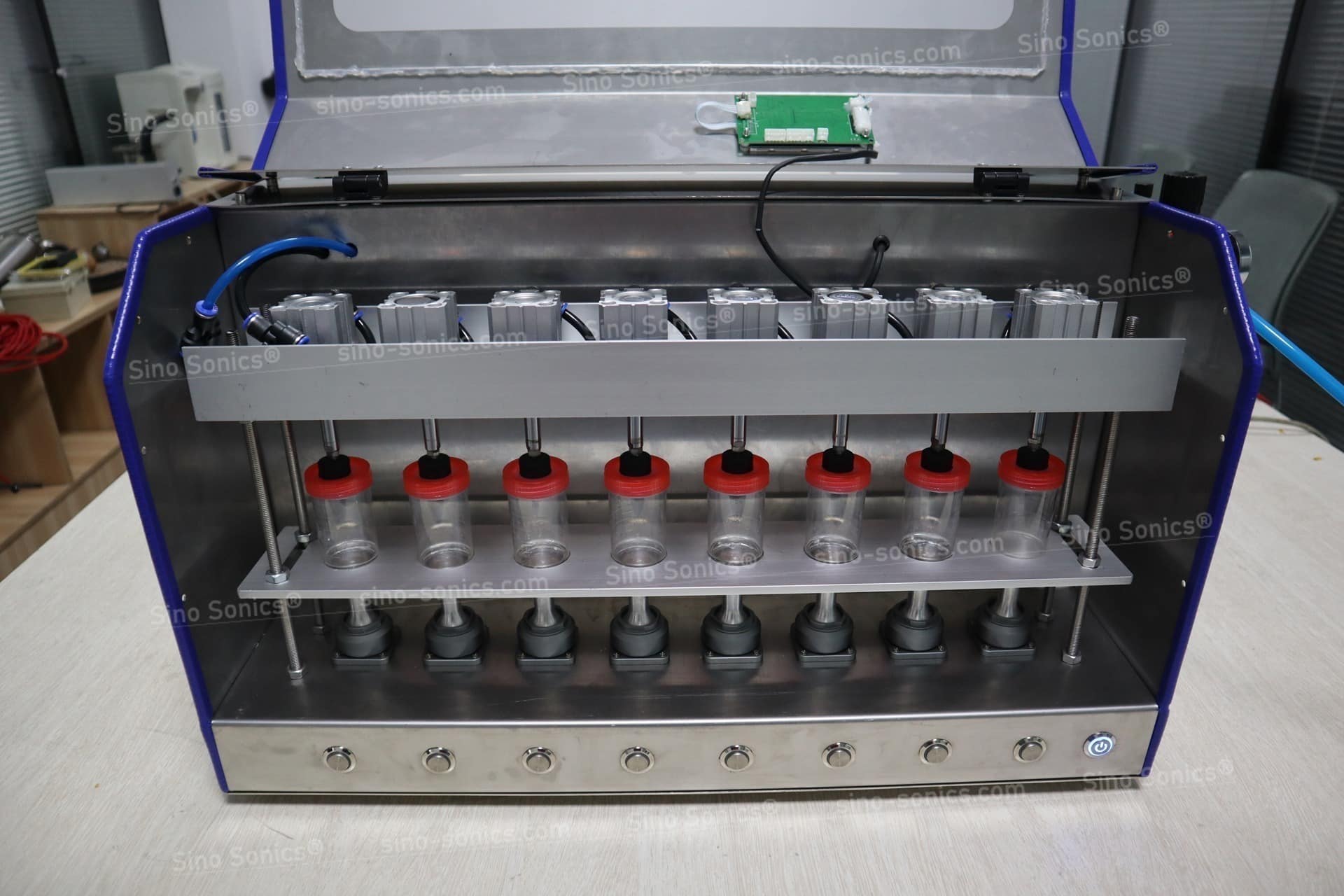

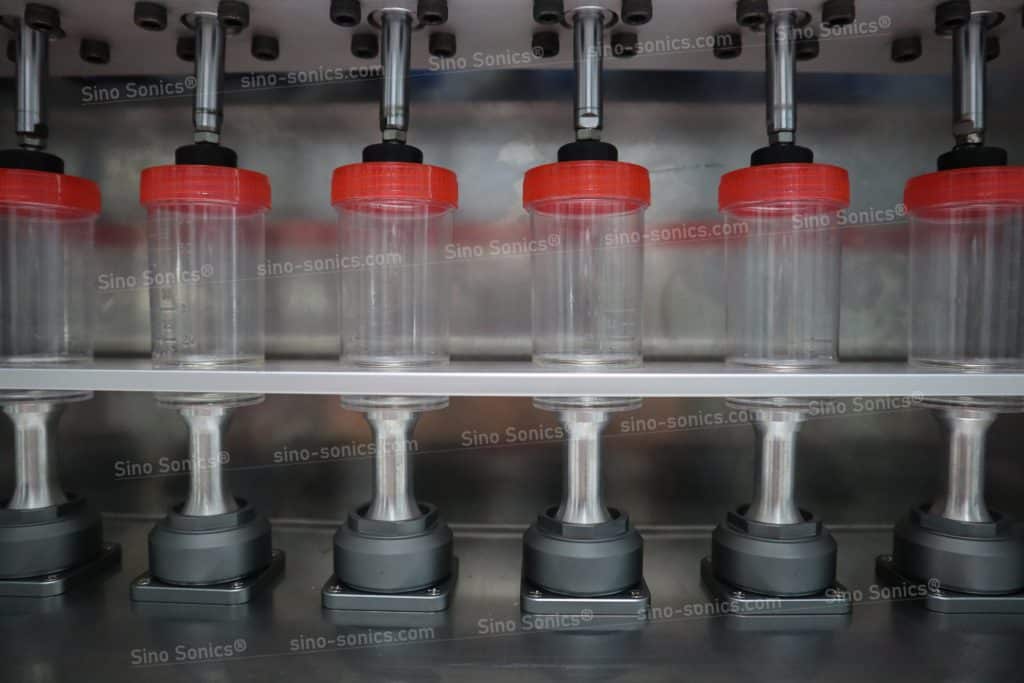

8 bottles, controled separately.

Ultrasonic emulsification laboratory

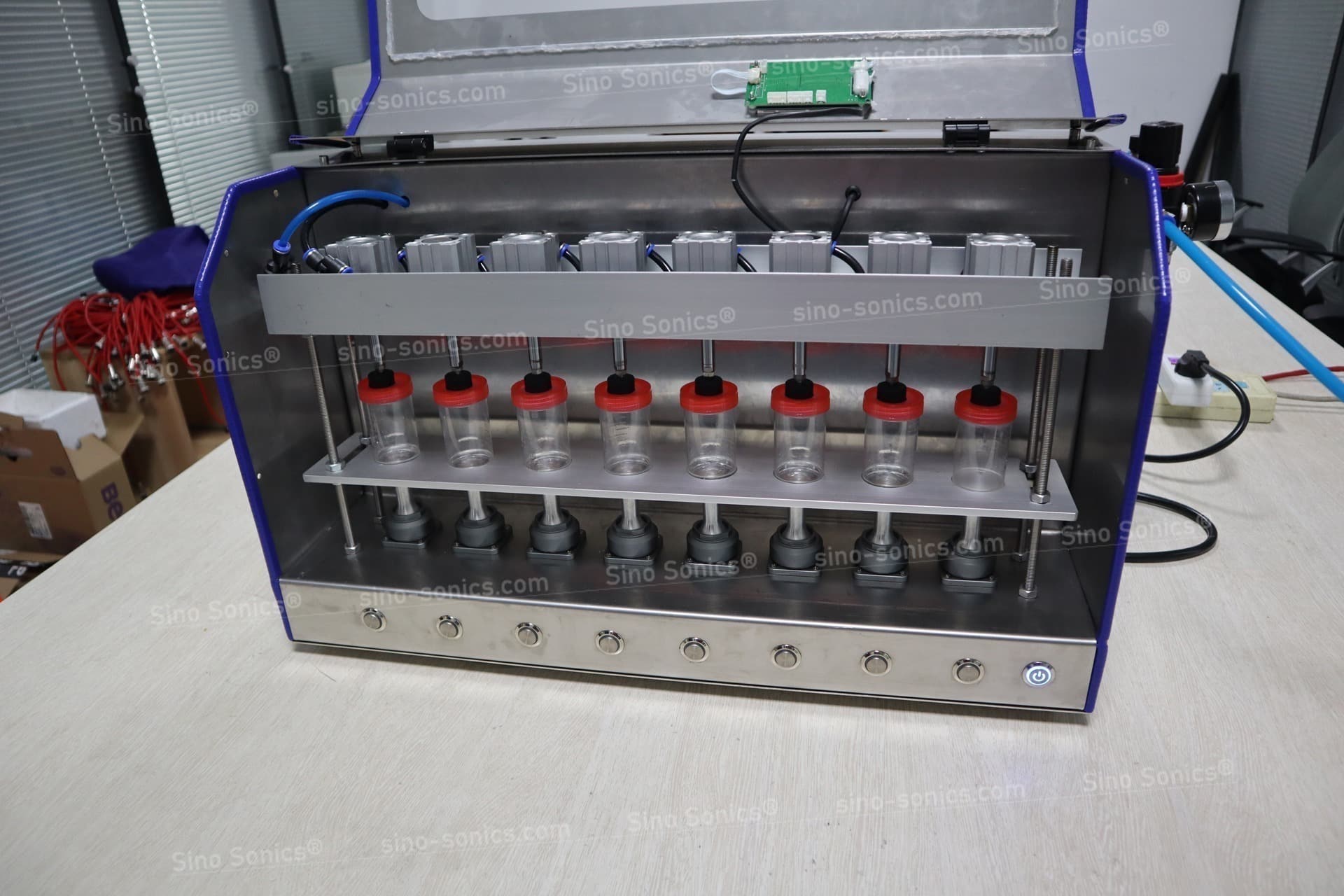

air pressure on the top, to hold the bottle

Ultrasonic emulsification laboratory

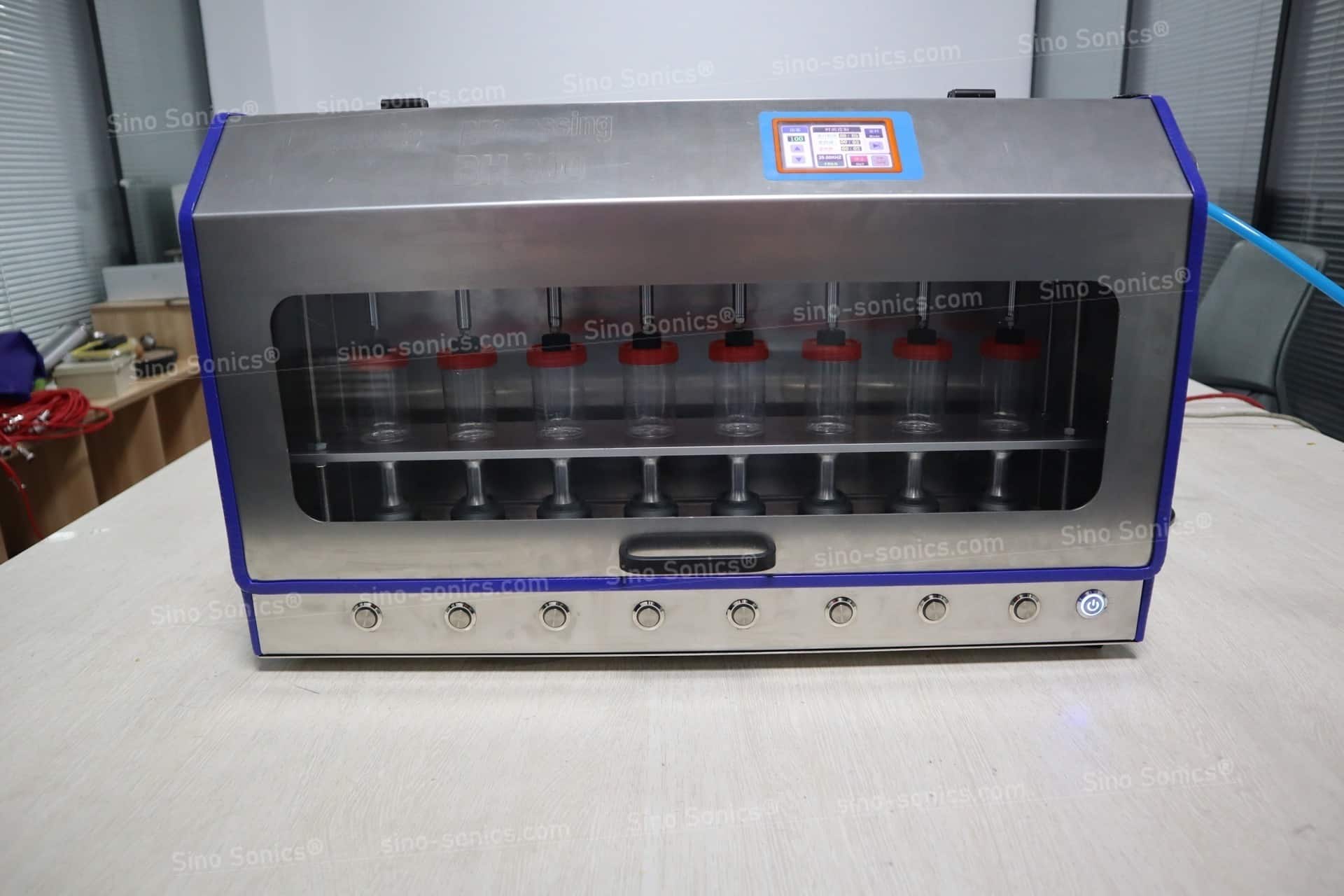

machine’s overlook

Ultrasonic emulsification laboratory

top control panel, menu can be english version

Ultrasonic emulsification laboratory

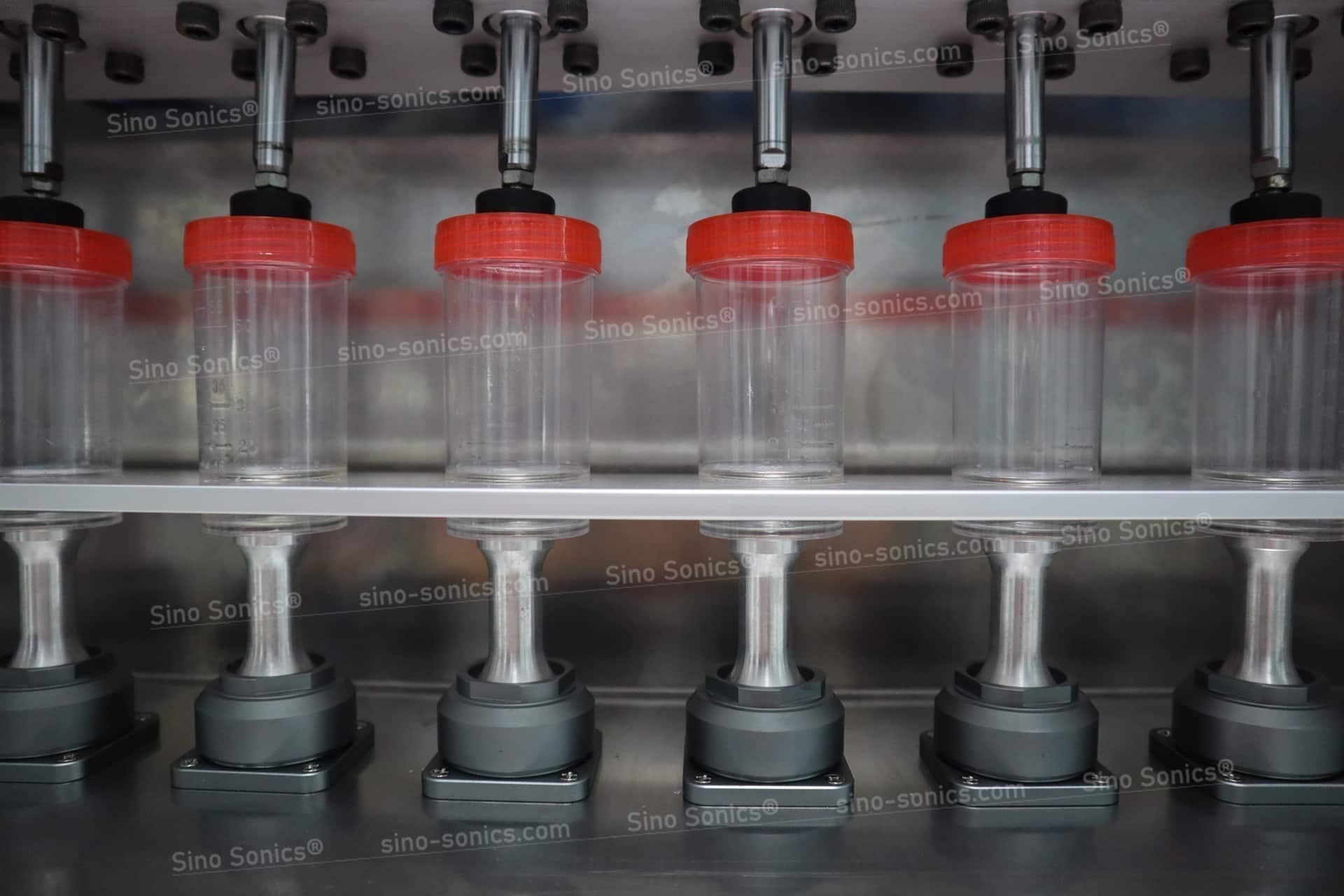

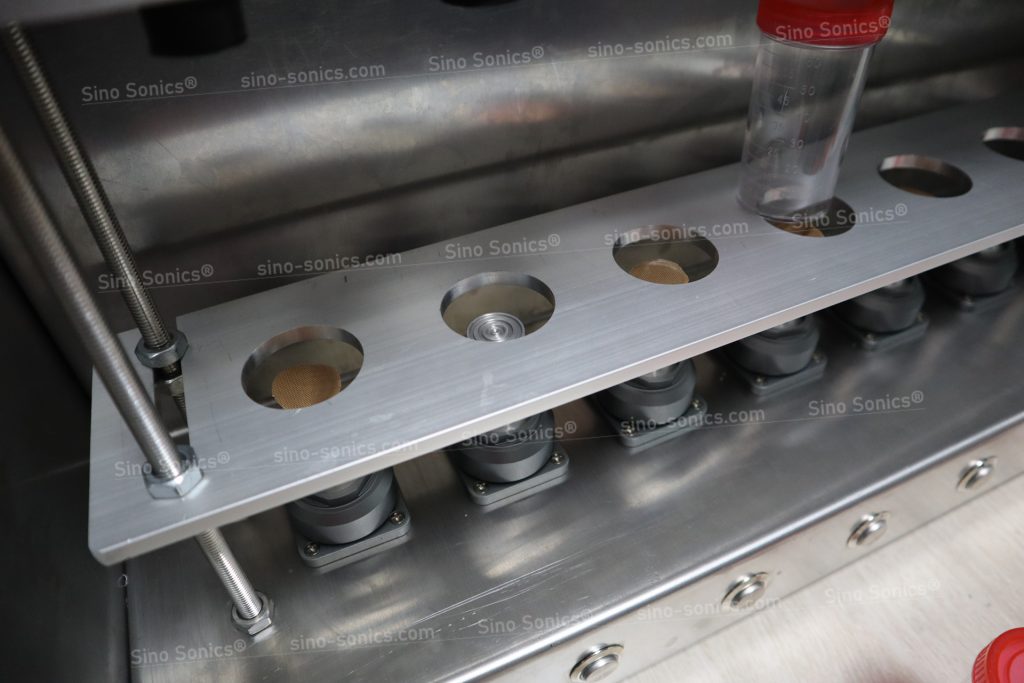

ultrasonic underneath the bottles

Ultrasonic emulsification laboratory

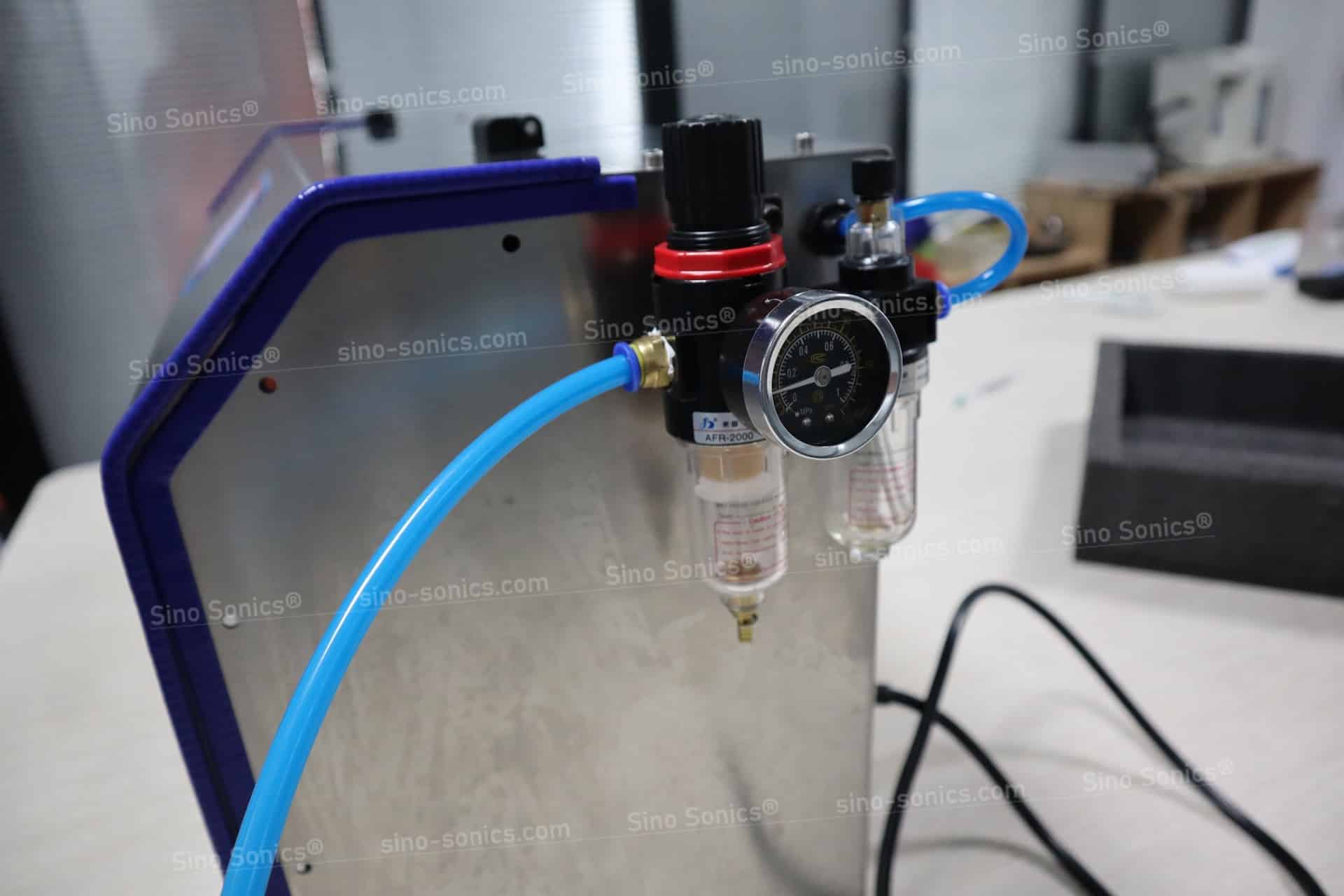

airpressure control switch

Ultrasonic emulsification laboratory

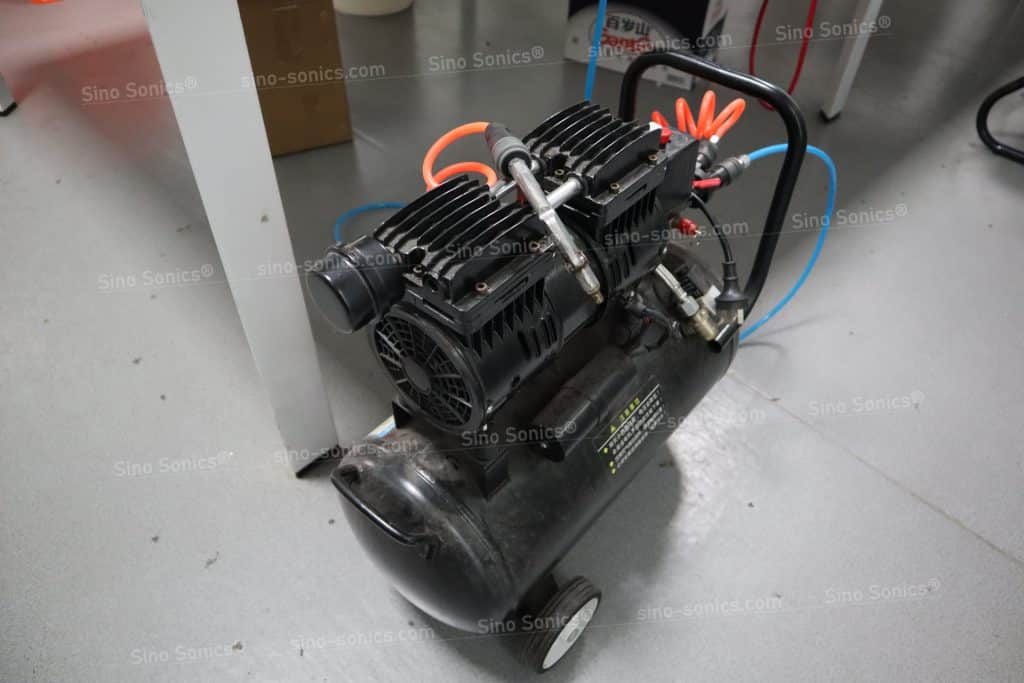

air compressor

Ultrasonic emulsification laboratory

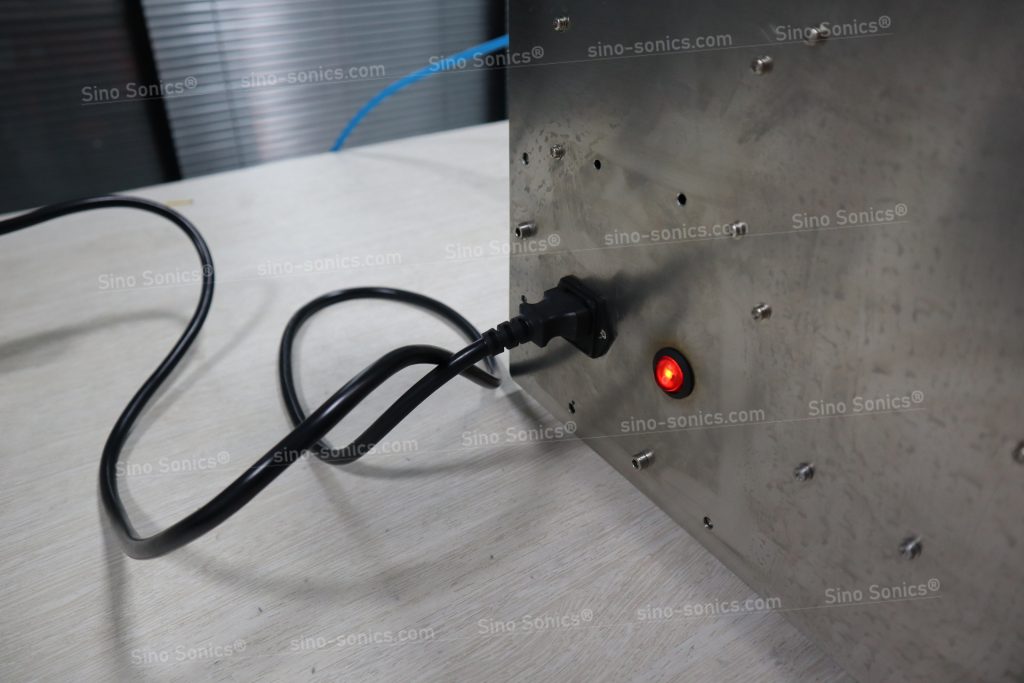

110 ~240v Power in & switch

Ultrasonic emulsification laboratory

back side overlook

Ultrasonic emulsification laboratory

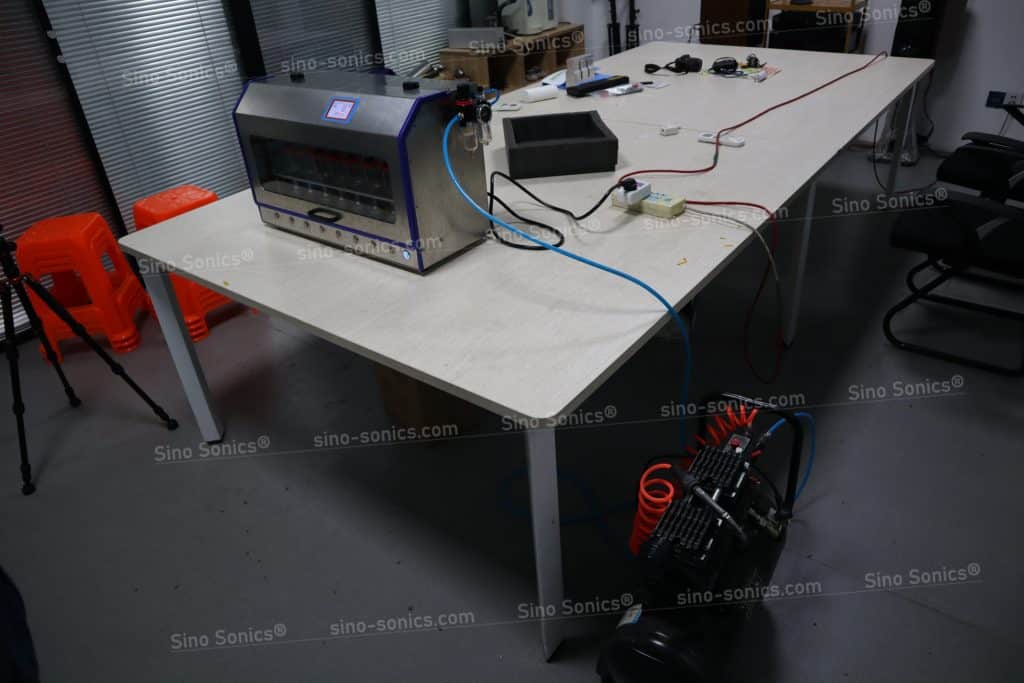

whole set including air compressor
