28kHz 2000Watt F50-SA-1
$190.00
24% Off
- For bulk order price please contact our sales expert.
- Poreless, high-density, military-grade piezoceramics
- Excellent electro-acoustic conversion efficiency
- Minimal thermal dissipation and power losses
- Large range of working temperature
- High reliablity
Description
Technical Details
| Electrical Specification | Data Result |
|---|---|
| Transducer Model No.: | 28kHz 2000Watt F50-SA-1 |
| Frequency (Fs ± 0.5kHz) | 28 kHz |
| Transducer’s Maximal Diameter: Maximum Height /Length: |
Φ50 mm 86 mm |
| Flange Size: | 52 mm |
| Piezoceramic Ring Diameter (mm) | Φ50 mm |
| Piezoceramic Ring Quantity (pc) | 4 Pcs |
| Impedance (Ω) | Transducer : 5 Ω |
| Capacitance (C±10%pF) | 13300 pF (P8 ) |
| Input Power (Watt) Max | Rated Power: 2000Watt |
| Amplitude (μmp-p) | Transducer : 13 μmp-p |
| Front Mass Metal | Aluminum Alloy |
| Back Mass Metal | Aluminum Alloy |
| Joint Bolt /Gain size | Default Type: M12x1.25 |
| Net Weight (gram) | 578 gram |
| Total Height /Length (mm) | 86 mm |
| Remarks: Available optional accessaries: |
Aluminum Booster Titanium Horn /Sonotrode Ultrasonic Generator (CE) |
* Here we showcase a range of top-quality replacement components at super-low prices. These parts are fully compatible with the standard components from major manufacturers including Branson, Dukane, Telsonic, SoniKks and Rinco, Weber, these major manufacturers and constructed to equal (in many cases slightly improved) quality.
* We’re able to sell these ultrasonic parts at rock-bottom prices only because this is an automated operation with minimal overheads; we don’t offer help in selecting suitable parts for a particular application, rather, you are expected to know what you want and be able to specify it exactly. Generally this means that you already have ultrasonic equipment working and need replacement parts for spares or to replace worn or damaged items. Likewise if you need further information about these parts please see the other manufacturers’sites linked above.
* We supply transducer, also transducer with booster & horn. & We offer technical support, and welcome customer’s design.
for more information, please click Additional information tab, or consult our expert.
Telphone No.: +86-510-84390688, Mobile & WhatsApp: +86-186-2632-1806 or send us email.

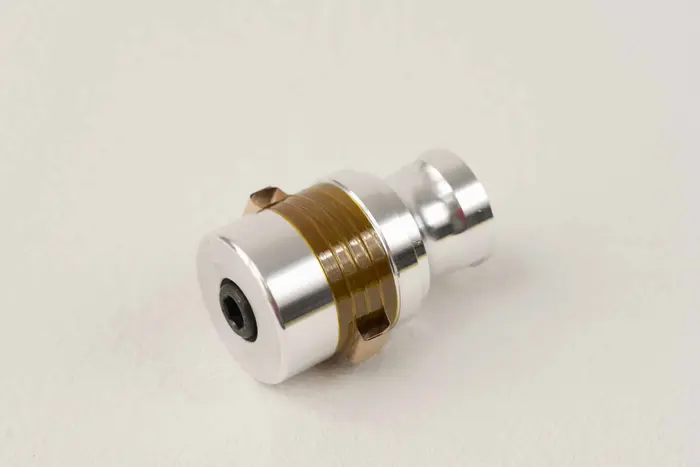

Photo Gallery for the transducer
Additional information
| Weight | 0.8 kg |
|---|---|
| Dimensions | 10 × 5 × 5 cm |
| Delivery Time | 7 days after receiving payment |
| Packing Style | Inside Foam + Carton (Fedex /DHL Delivery) |
| Payment Term | Bank Transfer T/T for Order $500 & more, T/T or Paypal or West Union for Order less than $500 |
