Home » Shop » SoniKKs 35kHz 1200watt Replacement

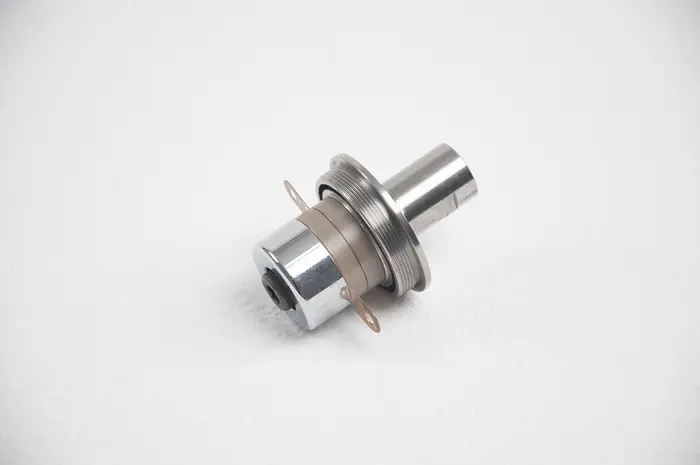

SoniKKs 35kHz 1200watt Replacement

$250.00

11% Off

  • Redesigned soniKKs 35 kHz transducer replacement
  • more powerful upto: 1200 w
  • more capacitance 2200 pF
  • low Impedance 14.0 Ω
  • Wide Bandwidth: 34.5 kHz ~ 37.5 kHz
Categories: Tags: , SKU: SoniKKs_35kHz_Transducer

Description

Technical Details

Electrical Specification Data Result
Transducer Model No.: SoniKks 35kHz 1200watt Replacement
Frequency (Fs ± 0.5kHz) 35 kHz (working 34.5k – 38k)
Transducer’s Maximal Diameter:
Maximum Height /Length:
Φ48 mm
30 mm
Flange Size: Φ42.7 mm
Piezoceramic Ring Diameter (mm) Φ30 mm
Piezoceramic Ring Quantity (pc) 2 Pcs
Impedance (Ω) Transducer : 5.4 Ω
Capacitance (C±10%pF) 2200 pF
Input Power (Watt) Max Rated Power: 1200Watt
Amplitude (μmp-p) Transducer : 5 μmp-p
Front Mass Metal Titanium Alloy
Back Mass Metal Titanium Alloy
Joint Bolt /Gain size M8 or 3/8″ bolt, default M8
Net Weight (gram) 229 gram
Total Height /Length (mm) 68 mm
Remarks: Available optional accessaries:
Ultrasonic Generator (CE)
Aluminum Booster
Titanium Horn /Sonotrode
Horn Materials: 40CrNimoA or Titanium Alloy

Impedance Analysis Chart

Friendly Reminder

* Here we showcase a range of top-quality replacement components at super-low prices. These parts are fully compatible with the standard components from major manufacturers including Branson, Dukane, Telsonic, SoniKks and Rinco, Weber, these major manufacturers and constructed to equal (in many cases slightly improved) quality.

* We’re able to sell these ultrasonic parts at rock-bottom prices only because this is an automated operation with minimal overheads; we don’t offer help in selecting suitable parts for a particular application, rather, you are expected to know what you want and be able to specify it exactly. Generally this means that you already have ultrasonic equipment working and need replacement parts for spares or to replace worn or damaged items. Likewise if you need further information about these parts please see the other manufacturers’sites linked above.

* We supply transducer, also transducer with booster & horn. & We offer technical support, and welcome customer’s design.

for more information, please click Additional information tab, or consult our expert.
Telphone No.: +86-510-84390688, Mobile & WhatsApp: +86-186-2632-1806 or send us email.

Additional information

Weight 0.5 kg
Dimensions 7 × 5 × 5 cm
Delivery Time

7 days after receiving payment

Packing Style

Inside Foam + Carton (Fedex /DHL Delivery)

Payment Term

Bank Transfer T/T for Order $500 & more, T/T or Paypal or West Union for Order less than $500
