SONOBIO 30L Ultrasonic Homogenizer Double-Layer Glass Reactor
Original price was: $10,000.00.$7,000.00Current price is: $7,000.00.
30% Off
- Dual system — 20 kHz / 2000 W ultrasonic probe + mechanical stirring
- Wide temperature range — jacketed −80 °C to +250 °C
- Chemically inert — high-borosilicate 3.3 glass + PTFE wetted parts
- Touch-screen generator — auto-frequency tracking, 0–450 rpm stirring
- Scalable — 10 / 20 / 30 / 50 / 100 / 150 L, same architecture
- One year warranty — full machine + lifetime technical support
Description

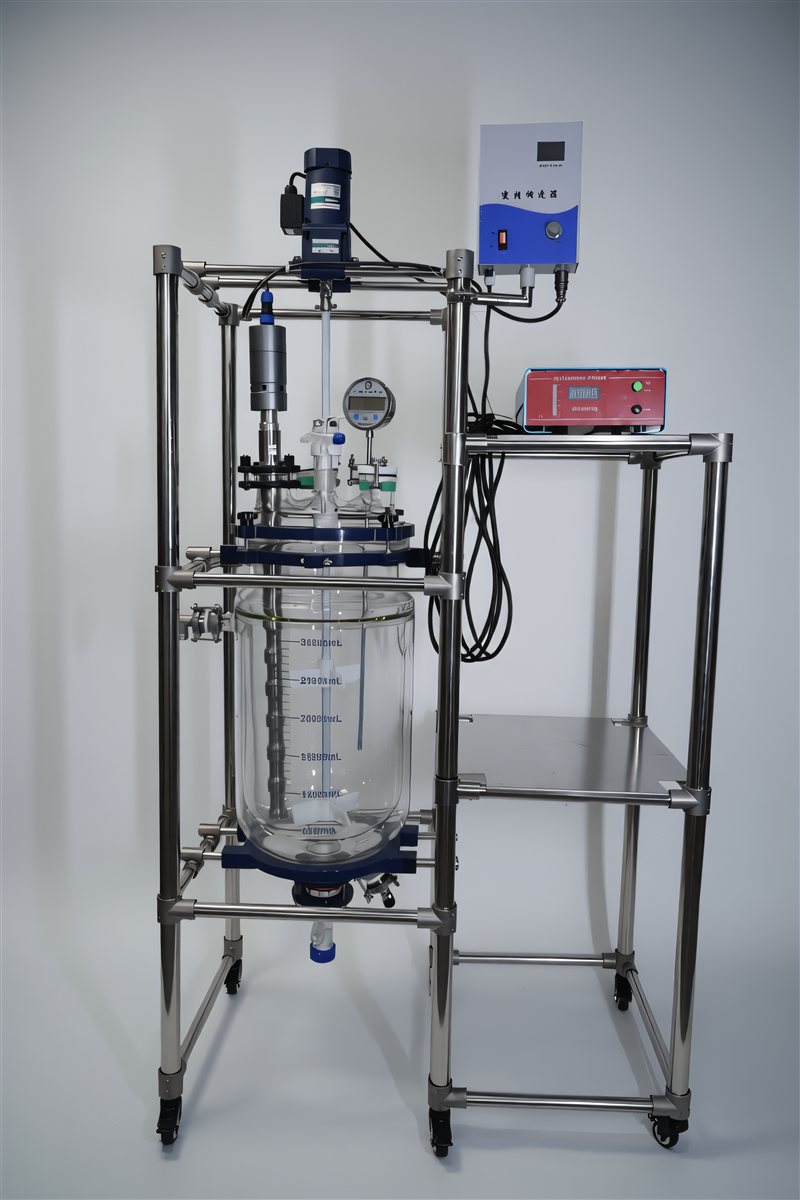

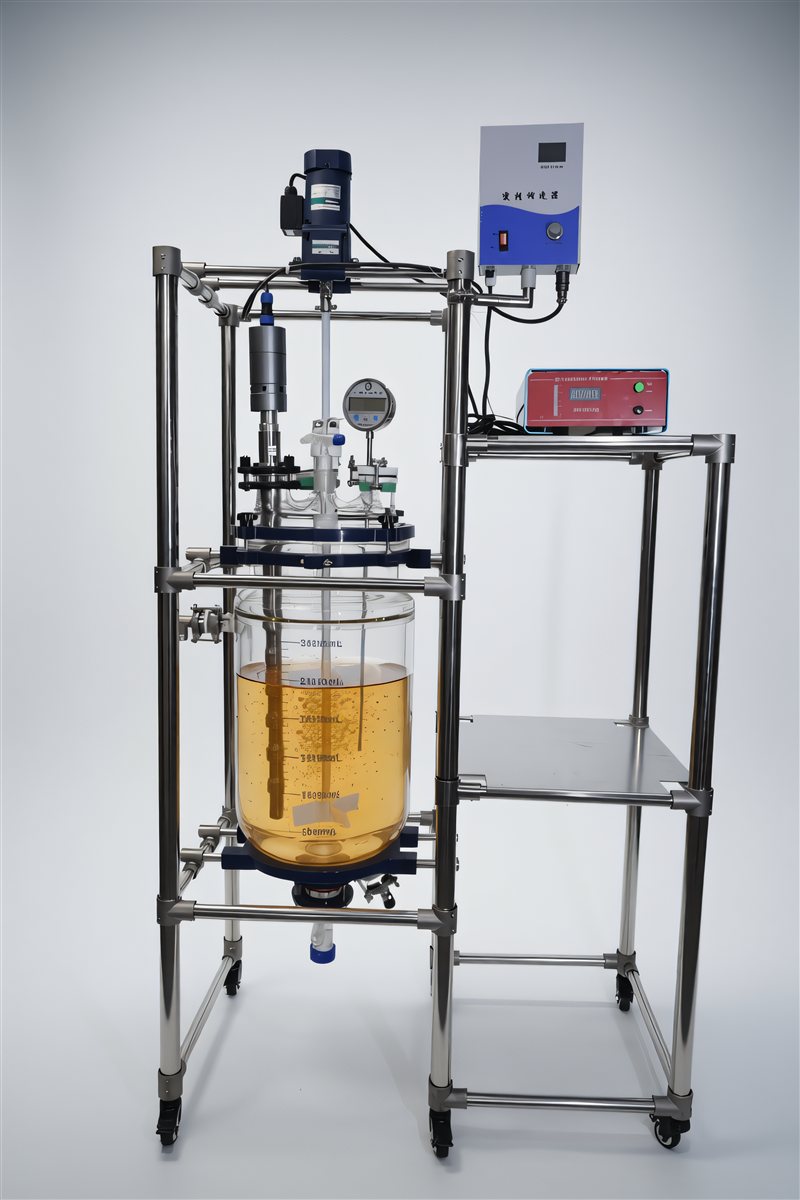

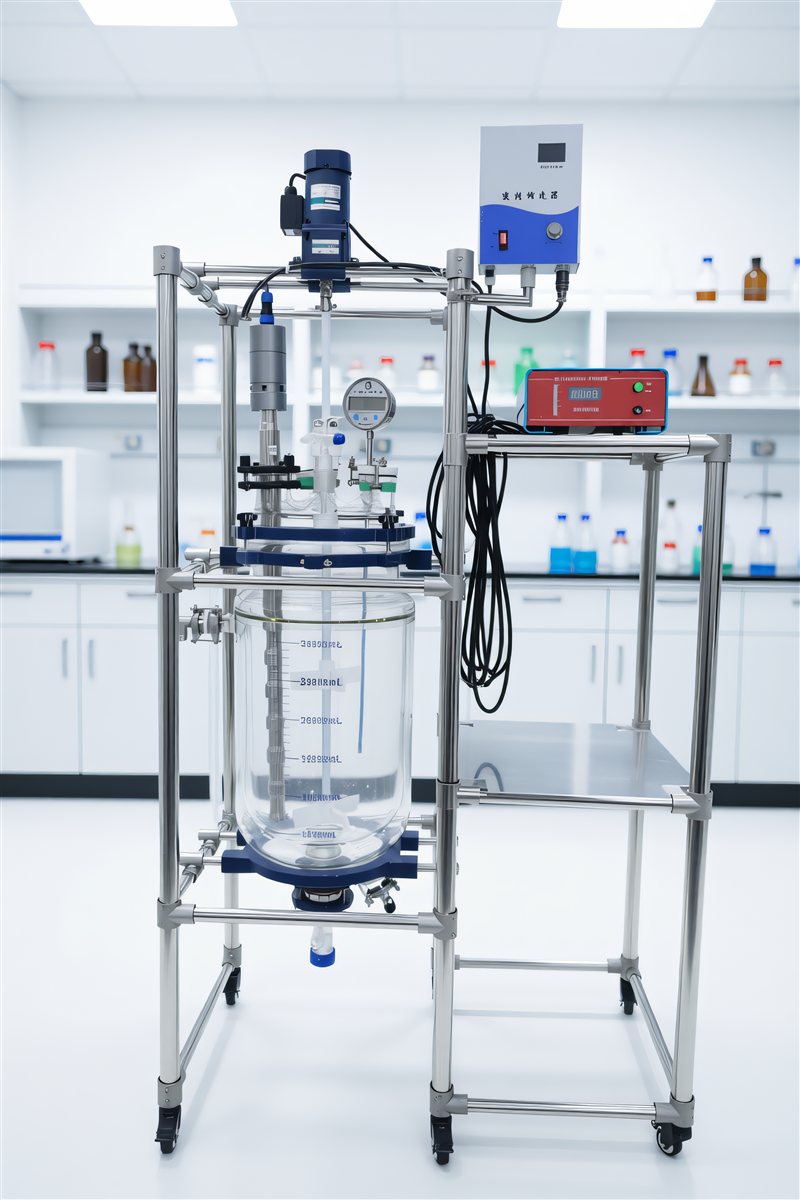

SONOBIO 30L Ultrasonic Double-Layer Glass Reactor (SEWS-30L)
The SONOBIO SEWS-30L integrates two complementary processing systems inside a single high-borosilicate glass vessel: a 20 kHz / 2000 W ultrasonic dispersion system and a constant-speed mechanical stirring system. This dual approach overcomes the limits of conventional emulsifiers and stirred tanks, delivering finer particle-size reduction, more uniform dispersion, and faster reaction kinetics across dispersion, homogenization, and sonochemistry applications.
The double-layer (jacketed) design lets you circulate an external heating or cooling medium through the jacket for precise thermal control throughout the process, while the 30 L working volume makes the reactor well suited to pilot-scale and scale-up trials that bridge the lab bench and production.
Key takeaways
- Dual processing in one vessel: high-intensity ultrasonic dispersion combined with 0–450 rpm constant-speed mechanical stirring for low-speed, high-torque mixing.
- 20 kHz / 2000 W ultrasonics driven through a Ti-6Al-4V titanium-alloy probe, with a digital generator that tracks frequency automatically.
- Jacketed temperature control across a –80 to +250 °C range, held to ±1 °C and monitored by an in-vessel PT100 sensor.
- Fully glass-and-PTFE wetted path: high-borosilicate 3.3 glass vessel with PTFE components for broad chemical compatibility.
- 30 L pilot-scale capacity on a mobile frame with castors, supporting vacuum operation down to 0.098 MPa.
Why it stands out: Combining ultrasonic cavitation with mechanical stirring in one jacketed vessel achieves dispersion uniformity and particle-size reduction that conventional emulsifiers and stirred reactors cannot match in a single step.
Pro tip: Run the mechanical stirrer at low speed alongside the ultrasonic probe to keep the full 30 L batch circulating through the high-cavitation zone near the probe tip, which improves batch-to-batch consistency on viscous or settling-prone media.
Operating note: Keep the ultrasonic probe submerged in liquid before activating the generator, and stay within the rated –80 to +250 °C window so the borosilicate glass and PTFE wetted parts are not thermally overstressed.
Customer installation · Croatia“The reactor has been excellent for our mushroom extraction.”— Customer in Croatia, mushroom extraction
Reactor Specifications
| Specification | Details |
|---|---|
| Model | SEWS-30L |
| Reactor Capacity | 30 L (Inner Dia. 330 mm, Outer Dia. 365 mm, Inner Length 516 mm) |
| Jacketed Layer Capacity | Approx. 12 L |
| Voltage & Frequency | 220V / 50Hz (110V available on request) |
| Stirring Motor Power | 120 W |
| Stirring Speed | 0–450 rpm |
| Reactor Temperature Range | -80 °C to +250 °C |
| Temperature Accuracy | ±1 °C |
| Vacuum Pressure | 0.098 MPa |
| PTFE Reactor Lid | 5 ports |
| Stirring Paddle | Anchor-type, 304 SS + PTFE |
| Overall Dimensions (W×D×H) | Approx. 700 × 585 × 1900 mm |
| Net Weight | Approx. 65 kg |
Ultrasonic System Specifications
| Specification | Details |
|---|---|
| Ultrasonic Frequency | 20 kHz |
| Ultrasonic Power | 2000 W |
| Probe Material | Titanium alloy (Ti-6Al-4V) |
| Generator | Digital, auto-frequency tracking |
| Control Mode | Continuous / Pulse / Timed |
| Power Adjustment | 1%–100%, 1% increment |
| Timer | 1 min – 99 hours |
| Display | Color touch screen |
Applications
- Sonochemistry and chemical reaction synthesis — cavitation accelerates reaction rates and improves yield.
- Nanomaterial dispersion and composite preparation — breaks up agglomerates for uniform particle distribution.
- Pharmaceutical extraction (herbal medicine, plant extraction) — enhances release of active compounds at lower temperatures.
- Oil-water emulsification — produces fine, stable emulsions without added surfactants.
- Cell disruption and biological extraction — ruptures cell walls to release intracellular contents.
- Wastewater treatment (COD degradation) — assists oxidation and breakdown of organic pollutants.
- Soil organic matter extraction — improves recovery efficiency in sample preparation.
- Accelerated dissolution and homogenization — shortens mixing time for difficult-to-dissolve solids.
Standard Package Includes
- 30L double-layer glass reactor body with PTFE lid (5 ports)
- Stainless steel + aluminum alloy support frame with casters
- Anchor-type stirring paddle (304 SS + PTFE)
- Stirring motor with digital speed controller
- PT100 temperature sensor
- 20 kHz / 2000 W ultrasonic generator
- Titanium alloy ultrasonic probe with transducer
- Discharge valve assembly
- Connection cables & user manual (English)
Frequently Asked Questions
What ultrasonic power and frequency does this 30L reactor use?
It uses a 20 kHz ultrasonic system rated at 2000 W, driving a titanium alloy probe immersed directly in the reaction medium.
Are the chiller and heater included with the reactor?
No. The double-layer jacket requires an external circulating chiller or heater to control reaction temperature; these units are not part of the standard configuration and can be supplied separately on request. Please contact our engineers to match the right circulator for your process.
What temperature range can the jacket handle?
With a suitable external circulating medium, the reactor supports a working temperature range of -80°C to +250°C.
What power supply does it require?
The standard configuration runs on 220V / 50Hz. A 110V version can be customized; please specify your local voltage and frequency when inquiring.
What are the wetted materials?
The reactor body is high-borosilicate 3.3 glass, and the wetted sealing parts are PTFE, giving broad chemical compatibility for most acids, bases, and solvents.
Can it run under vacuum or reduced pressure?
Yes. The reactor can operate under reduced pressure down to a vacuum of 0.098 MPa, which is useful for low-temperature distillation and degassing.
What warranty do you provide?
We provide a one year warranty on the reactor. Technical support is available throughout the service life of the unit.
What is the lead time, and can the reactor be customized?
Lead time and customization (volume, configuration, voltage, accessories) depend on your specific requirements. Please contact our engineers with your application details for an accurate proposal.
Additional information
| Weight | 120 kg |
|---|---|
| Dimensions | 110 × 60 × 200 cm |
